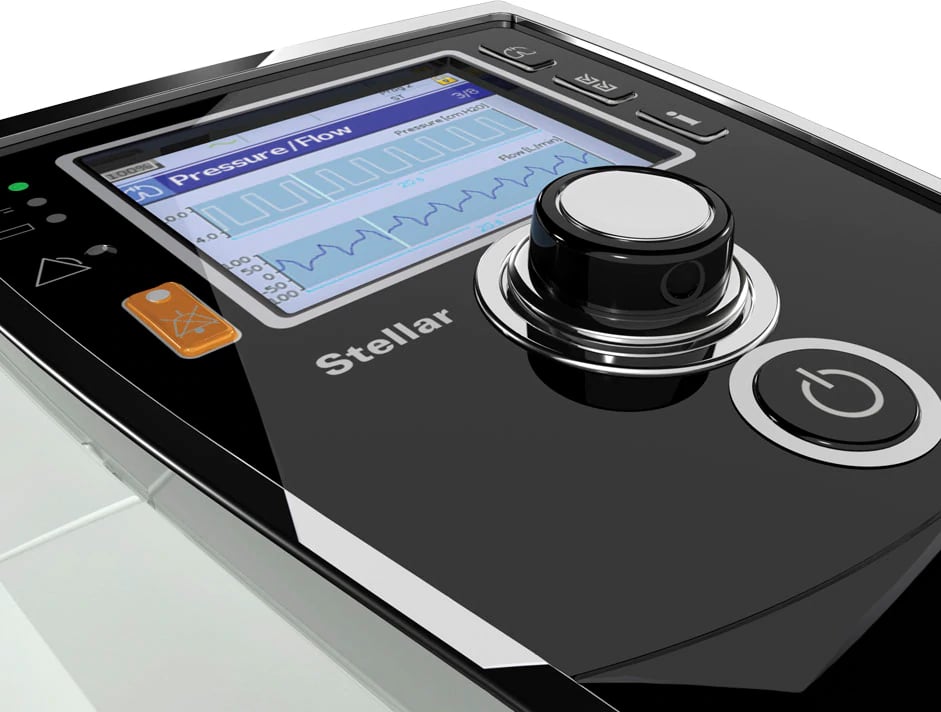

StellarTM 150

Designed for versatility, the Stellar 150 is a noninvasive ventilator with invasive capabilities. Offering a comprehensive range of therapy modes, Stellar treats a wide range of adult and paediatric patient types with changing respiratory needs. From those who need NIV during their hospital stay to chronic patients at home with conditions, such as COPD, NMD and OHS, Stellar is a versatile system designed with its end-users in mind.

Stellar highlights

Meeting the demands of fast-paced hospitals

Packed with technologies to aid intuitive setup and streamline processes in the busy hospital environment, Stellar helps you...

Read more
Delivering optimal therapy to suit your patients

Known for its versatility, Stellar covers ventilation for a wide range of patients with sensitivity to...

Read more
Transitioning home and staying mobile

Stellar not only provides for patients’ respiratory needs, but also helps them achieve...

Read more

Key features

  Stellar 150
Modes iVAPS (intelligent Volume-Assured Pressure Support) with AutoEPAP

ST (Spontaneous–Timed)

PAC (Pressure Assisted Control)

CPAP (Continuous Positive Airway Pressure)

S (Spontaneous)

T (Timed)
Pressure range IPAP: 2–40 cm H2O

EPAP: 2–25 cm H2O
TiControl™ Ti Max 0.3–4 sec

Ti Min 0.1–Ti Max
Respiratory Rate 5–60 bpm
Rise Time Min, 150–900 msec (approx.)
Trigger and Cycle Five sensitivity settings
Adjustable alarms High Leak

Low Minute Ventilation

Low and High Pressure

Low and High Respiratory Rate

Apnoea

Low and High FiO2

Low SpO2

Non-vented mask
Standard fixed alarms Circuit disconnected

Over pressure

Blocked tube

Internal battery empty
Dimensions (LxWxH) 230 x 170 x 120 mm
Weight 2.1 kg
Air filter Electrostatic fibre mesh
Air outlet 22 mm taper, compatible with ISO5356–1:2004
Internal battery Lithium-ion, 2 hours at EPAP 5, IPAP 15, 20 bpm
Power supply AC 100–240V 50–60Hz,

2.2A AC 110V 400Hz,

2.2A DC 24V/3A
IEC 60601–1 Classification Class II (double insulation) Type BF Continuous operation
Data solutions ResScan

EasyCare Tx software and Tx Link

Made to work together

Stellar 150

Remote alarm II

Remote alarm II

For the Stellar™ ventilator range.

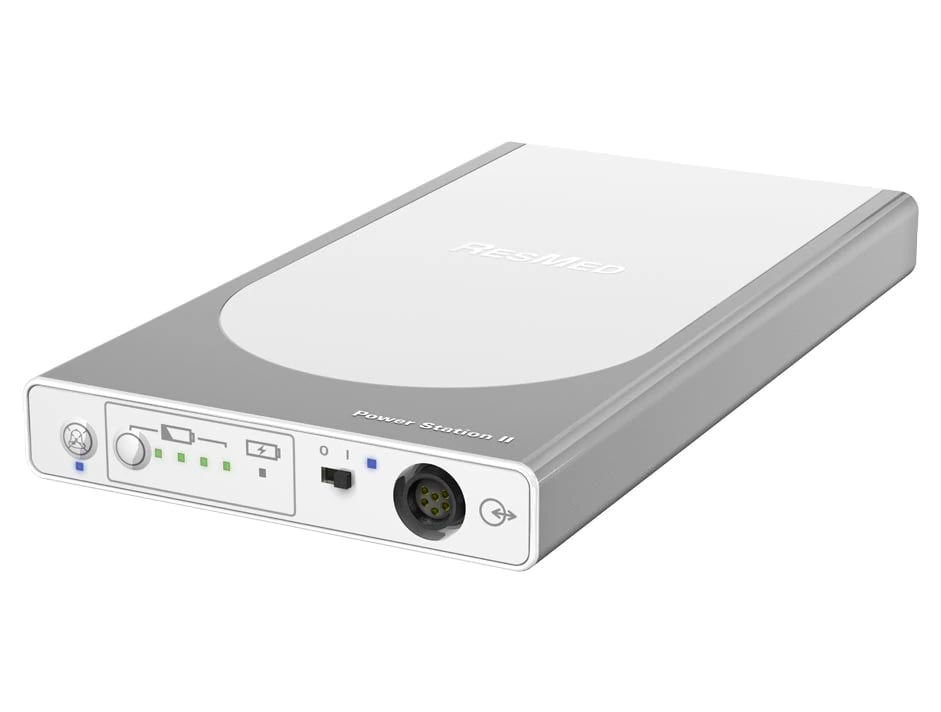

ResMed Power Station II (RPS I

ResMed Power Station II (RPS I

ResMed Power Station II is an external long-life, lithium-ion battery that simply works alongside ResMed sleep therapy devices or ventilators.

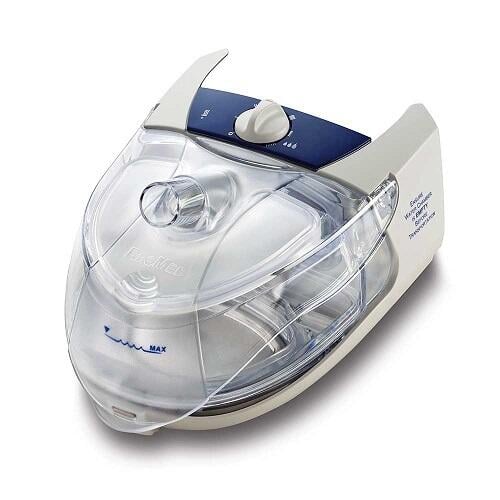

H4i

H4i

Superior humidity output ... seamlessly integrated.

devicesspvpapadaptheroimage

Protetor Nasal Gecko™

O protetor nasal Gecko™ é um acessório projetado para ajudar a aliviar o desconforto da máscara.

explore

How to buy

Please contact our Customer Service department for a list of ResMed accredited outlets that distribute ResMed products.
