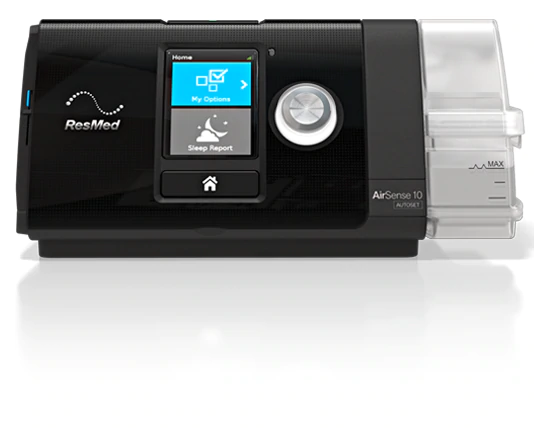

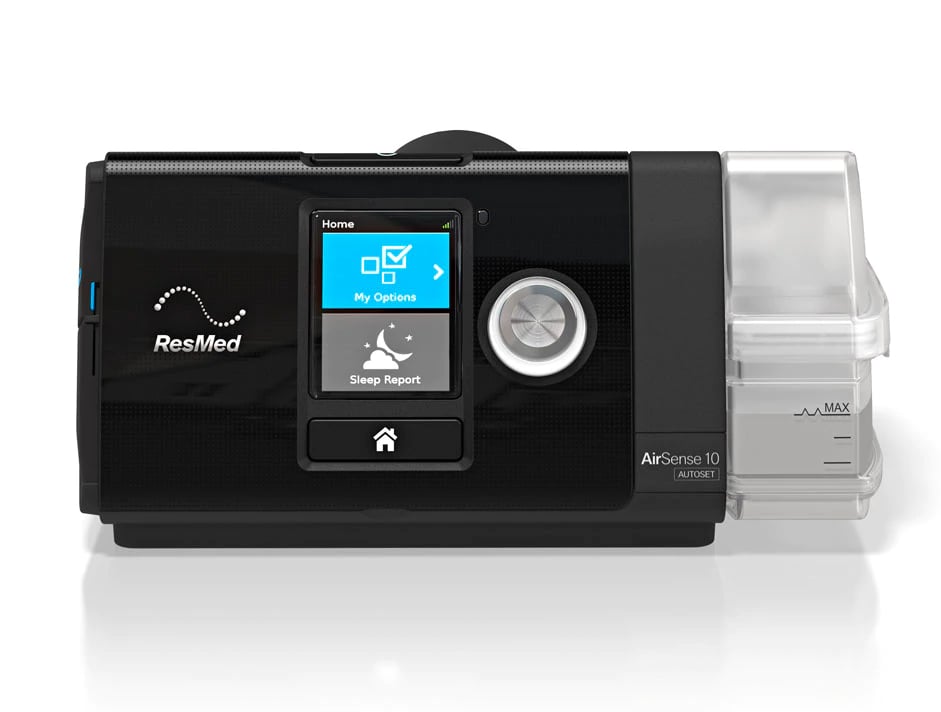

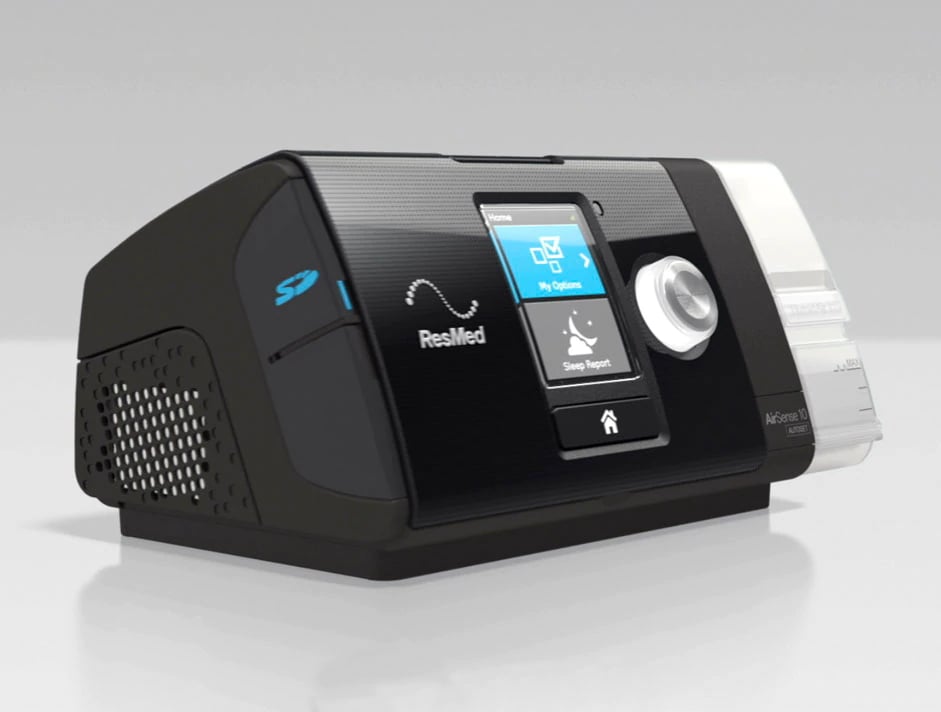

AirSenseTM 10 AutoSetTM

The AirSense 10 AutoSet is a premium auto-adjusting therapy device. It features integrated humidifier with ClimateLineAir™ for climate control, AutoRamp™ with sleep onset detection, expiratory pressure relief (EPR™) and Easy-Breathe technology. The AirSense 10 AutoSet provides advanced event detection, including indications of central sleep apnoea and Cheyne-Stokes respiration. Optional pulse oximetry monitoring is also available. Modes include AutoSet and CPAP. With the AirSense 10 AutoSet patient trial devices you can be more confident than ever before during their critical early days of adjusting to treatment.

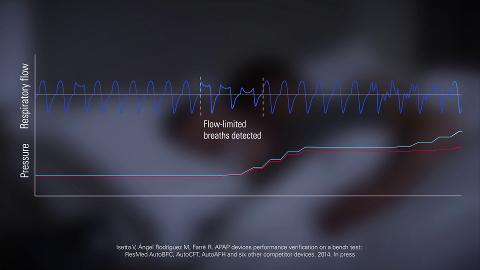

New AutoSet Response feature

ResMed’s AutoSet algorithm now allows for additional customisation of therapy with the new AutoSet Response feature which offers all the benefits of the enhanced AutoSet algorithm with gentler pressure increases for additional comfort.

New AutoSet Response feature

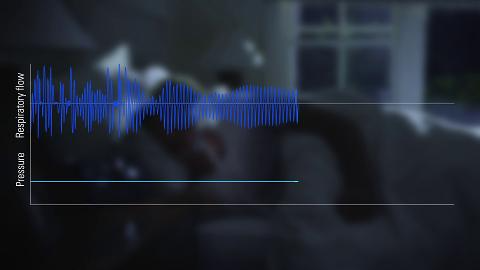

Central apnoea and Cheyne-Stokes respiration detection

The AirSense 10 AutoSet differentiates between obstructive and central apnoeas and can also detect indications of Cheyne-Stokes respiration, so you can be confident that your patients are receiving appropriate therapy.

Central apnoea and Cheyne-Stokes respiration detection

Other features

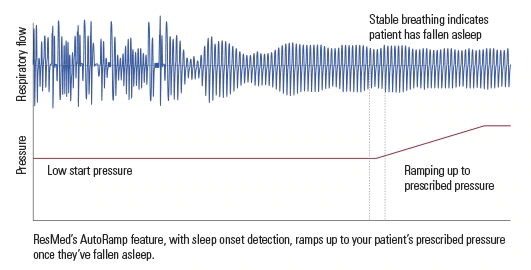

  • AutoRamp™. This new feature with sleep onset detection starts by delivering a low pressure for greater patient comfort. Then, once the patient falls asleep, it increases the pressure to the prescribed level.
  • Built-in ambient light sensor adjusts the brightness of the screen based on the light in the room. So if patients need to get up during the night, the screen’s back light won’t disrupt their bed partner.
  • Easy-Breathe motor is whisper-quiet, offering patients and their bed partners a more peaceful night’s sleep.

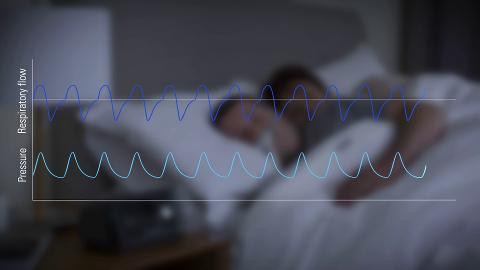

  • Expiratory pressure relief (EPR) maintains the optimal treatment for the patient during inhalation and reduces pressure during exhalation.

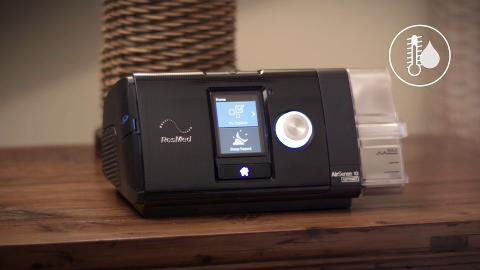

  • Consistent humidification throughout the night with the integrated HumidAir™ humidifier with advanced HumidAir technology helps patients adjust to treatment and use therapy longer.1
AutoSet (AU)

AutoSet (AU)

Humidification (AU)

Humidification (AU)

AutoRamp (AU)

AutoRamp (AU)

CSA and CSR (AU)

CSA and CSR (AU)

Easy-breathe (AU)

Easy-breathe (AU)

For a fully integrated approach to patient care, prescribe ResMed Air Solutions products.

Functional features

     AirSense 10 AutoSet
CPAP
AutoSet
AutoSet for Her
Cheyne-Stokes respiration detection
Central apnea detection
RERA reporting
AutoSet algorithm with AutoSet Response

AutoRamp with sleep onset detection
Climate Control
Enhanced Climate Control Auto

Advanced HumidAir technology
Expiratory Pressure Relief  (EPR™)
SmartStart™
AutoSet for Her
AutoSet for Her
AutoSet for Her

Technical specifications

Dimensions (H x W x D) (Device and water tub)   4.57" x 10.04" x 5.91"
Weight 44 oz
Air filter Standard: Average arrestance: > 75% for ~7 micron dust

Hypoallergenic: Efficiency: >98% for ~7-8 micron dust. >80% for ~0.5 micron dust.

Aircraft use Meets Federal Aviation Administration requirements for all phases of air travel.
Operating pressure range 4 to 20 cm H2O
Pressure level measured according to ISO 17510-1:2007 (CPAP mode):
SlimLine or Standard air tubing 26.6 dBA with uncertainty of 2 dBA
Power level measured according to ISO 17510-1:2007 (CPAP mode):
SlimLine or Standard air tubing 34.6 dBA with uncertainty of 2 dBA
Sound (Declared dual-number noise emission values in accordance with ISO 4871:1996.)
Air tubing ClimateLineTM Air SlimLineTM Standard
Length 6'6” 6’ 6’.6”
Inner diameter 0.6" 0.6" 0.75"
Electromagnetic compatibility Complies with all EMC requirements according to IEC60601-1-2:2007 for residential, commercial and light industry environments. It is recommended that mobile communication devices be kept at least 1m away.

Reference

1

Kline LR, Carlson P. NCPAP acceptance and compliance is altered by humidification. Sleep 1999;22: Suppl. S230
