Stellar 100

Designed for versatility, the Stellar 100 is a noninvasive ventilator with invasive capabilities. Offering a comprehensive range of therapy modes, Stellar treats a wide range of adult and paediatric patient types with changing respiratory needs. From those who need NIV during their hospital stay to chronic patients at home with conditions, such as COPD, NMD and OHS, Stellar is a versatile system designed with its end-users in mind.

How To Buy

Support

Learn more about Stellar Series

Stellar highlights

Meeting the demands of fast-paced hospitals

Packed with technologies to aid intuitive setup and streamline processes in the busy hospital environment, Stellar helps you...

Delivering optimal therapy to suit your patients

Known for its versatility, Stellar covers ventilation for a wide range of patients with sensitivity to...

Transitioning home and staying mobile

Stellar not only provides for patients’ respiratory needs, but also helps them achieve...

Key features

	Stellar 100
Modes	ST (Spontaneous–Timed) PAC (Pressure Assisted Control) CPAP (Continuous Positive Airway Pressure) S (Spontaneous) T (Timed)
Pressure range	IPAP: 2–40 cm H₂O EPAP: 2–25 cm H₂O
TiControl™	Ti Max 0.3–4 sec Ti Min 0.1–Ti Max
Respiratory Rate	5–60 bpm
Rise Time	Min, 150–900 msec (approx.)
Trigger and Cycle	Five sensitivity settings
Adjustable alarms	High Leak Low Minute Ventilation Low and High Pressure Low and High Respiratory Rate Apnoea Low and High FiO₂ Low SpO₂ Non-vented mask
Standard fixed alarms	Circuit disconnected Over pressure Blocked tube Internal battery empty
Dimensions (LxWxH)	230 x 170 x 120 mm
Weight	2.1 kg
Air filter	Electrostatic fibre mesh
Air outlet	22 mm taper, compatible with ISO5356–1:2004
Internal battery	Lithium-ion, 2 hours at EPAP 5, IPAP 15, 20 bpm
Power supply	AC 100–240V 50–60Hz, 2.2A AC 110V 400Hz, 2.2A DC 24V/3A
IEC 60601–1 Classification	Class II (double insulation) Type BF Continuous operation
Data solutions	ResScan EasyCare Tx software and Tx Link

Made to work together

Ventilation accessories

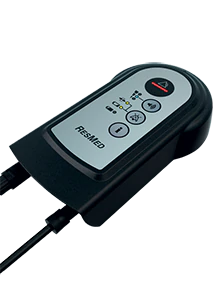

Remote alarm II

For the Stellar™ ventilator range.

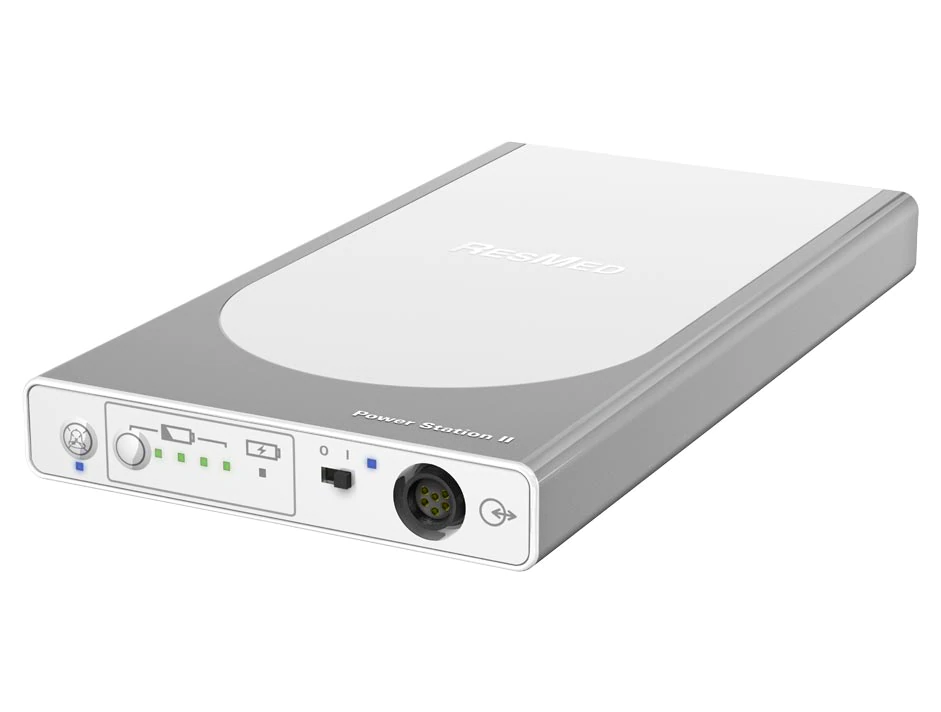

ResMed Power Station II (RPS I)
